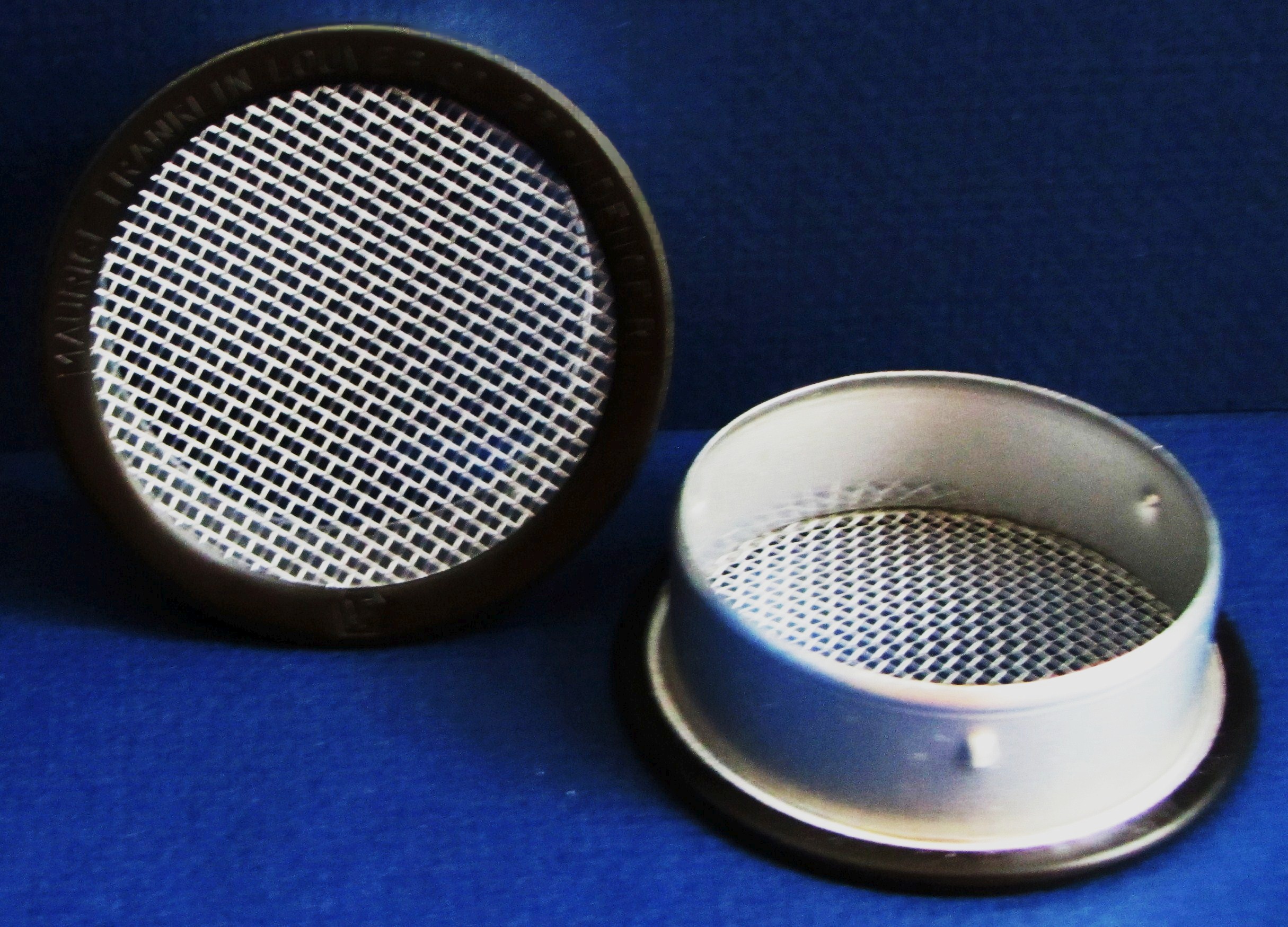

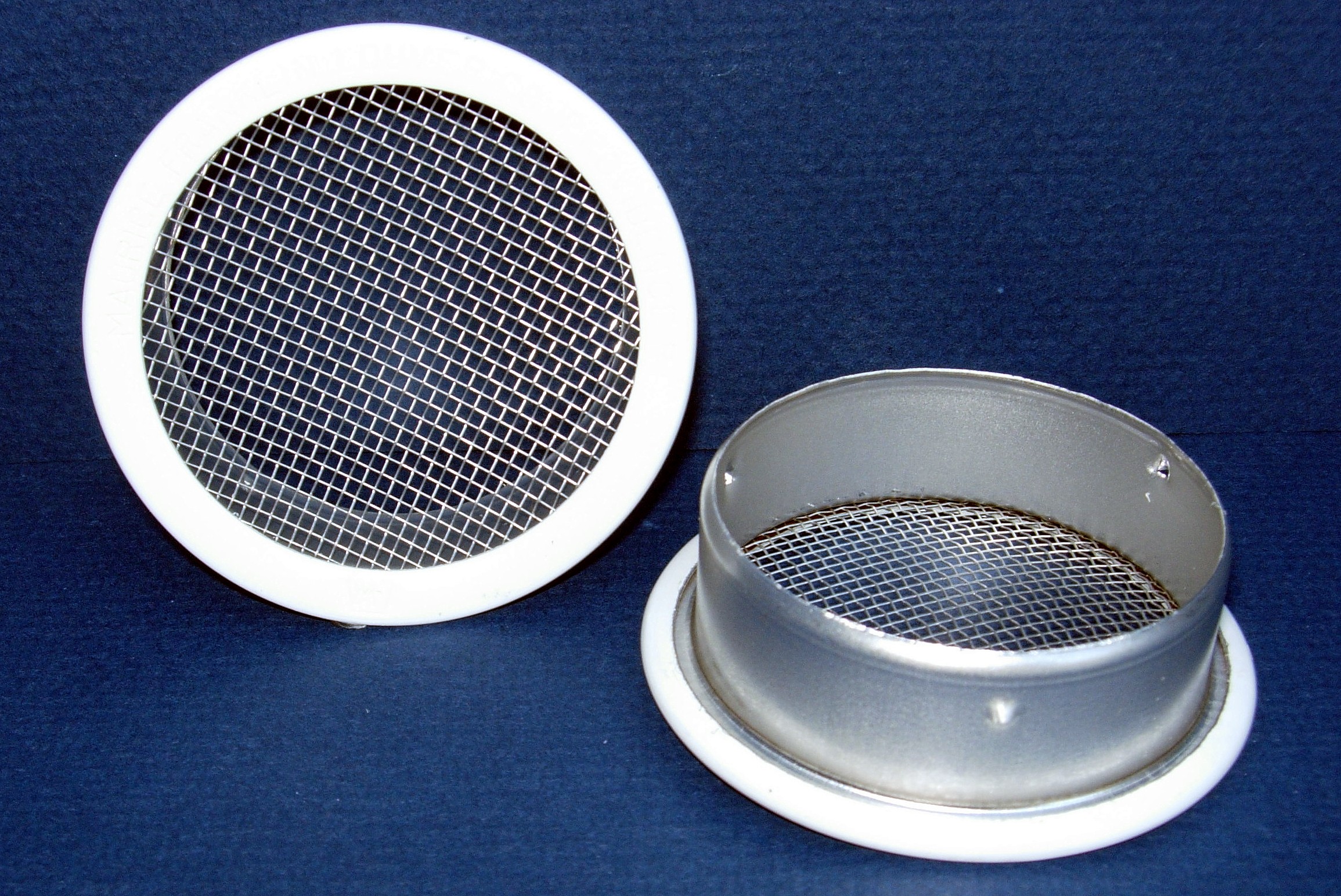

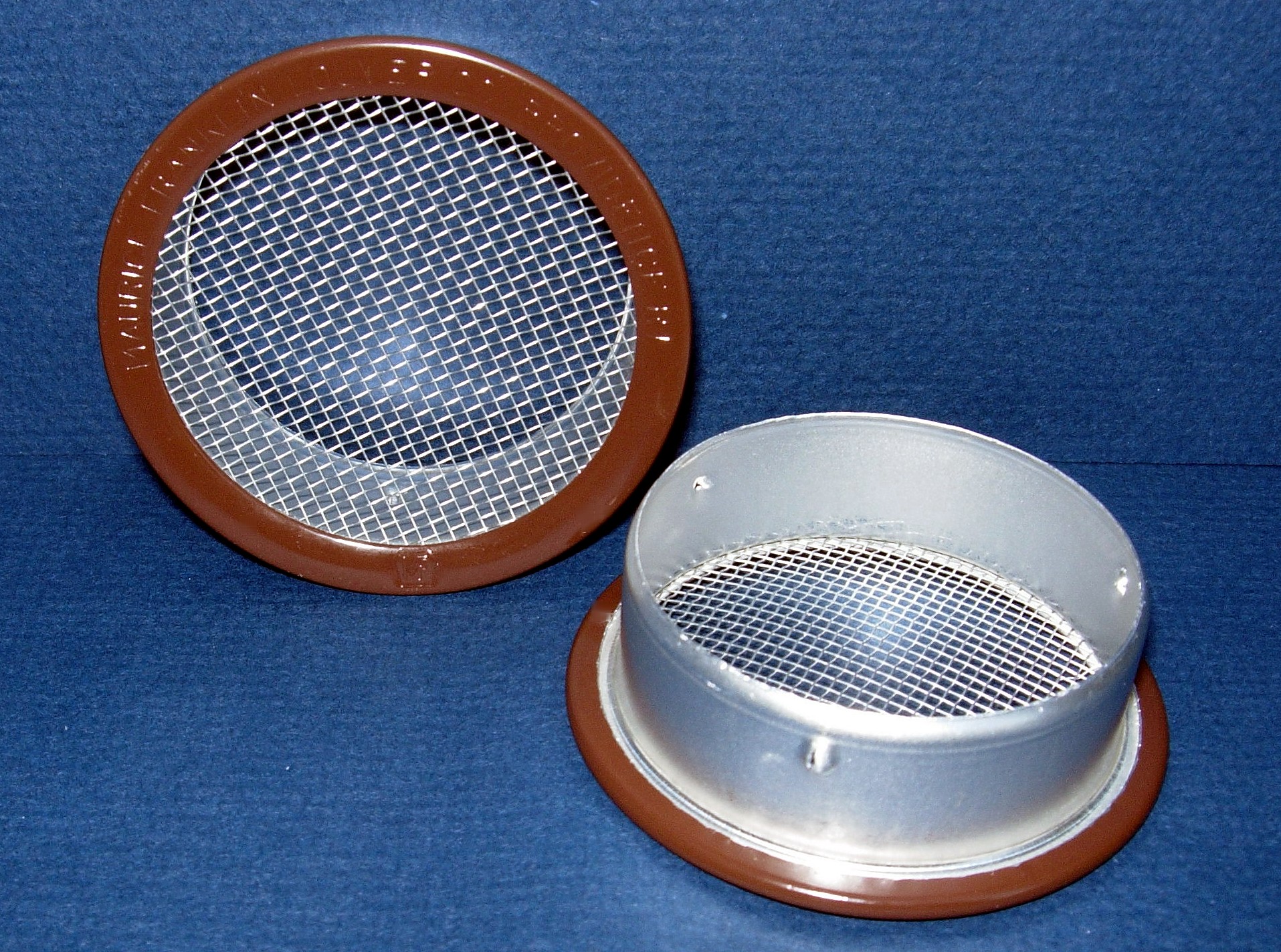

RS, RWS, RBLS & RBS Series Louvers

RS-100 (Mill finish)

RS-100 (Mill finish)

RS-100 (Mill finish)

Dimension in Inches
Louver Size A B C D
Screen
Dia.
E
No.
Fins
Net Free Area
Square Inches
Visual Size
Specifications

1 0.985 1.219 0.406 0.875 N/A 0.376
1.5 1.485 1.813 0.563 1.375 N/A 1.030
2 1.980 2.391 0.625 1.938 N/A 1.846
2.5 2.485 2.907 0.625 2.344 N/A 2.610
3 2.980 3.530 0.688 2.875 N/A 4.064
4 3.980 4.625 0.750 3.875 N/A 7.380
6 5.990 6.688 0.813 5.875 N/A 16.970
Specifications subject to change without notification


We use a minimum of .020-gauge aluminum for our round aluminum louvers, screens and plugs - most manufacturers use a thinner gauge, which leads to a weaker product. This thick, durable material maximizes lifespan and ensures proper ventilation needs.

Our round aluminum louver features include:

  • Easy installation
  • Rugged construction
  • Sizes from 1" to 6" as well as 1.5" and 2.5"
  • Stocked in a mill, white, black or brown finish
